Nodi Modular
Develop custom
CAD/CAM Solution
on your workflow
Extract Nodi's core 3D geometry computation capabilities and integrate them into your own applications to realize specialized CAD/CAM applications for specific design and manufacturing purposes at low cost.
npm install nodi-modular
Talk to TeamCASE 1 : 3DP Slicer
CASE 2 : Configurator
CASE 3 : Planning App
Robust CAD Kernel Crafted from Scratch

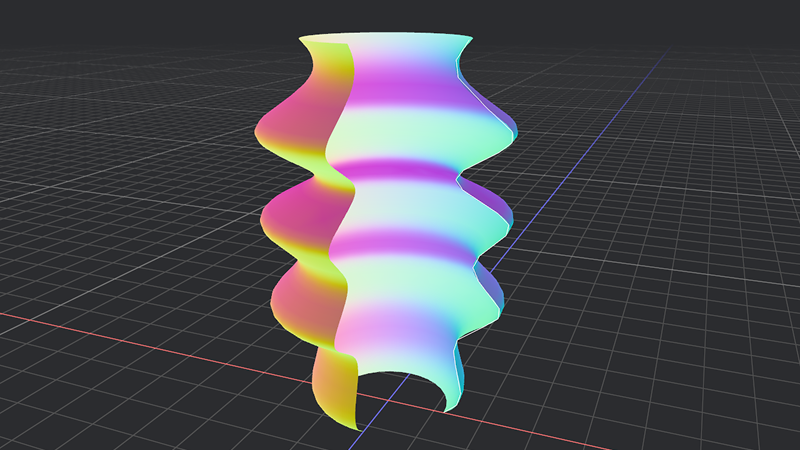

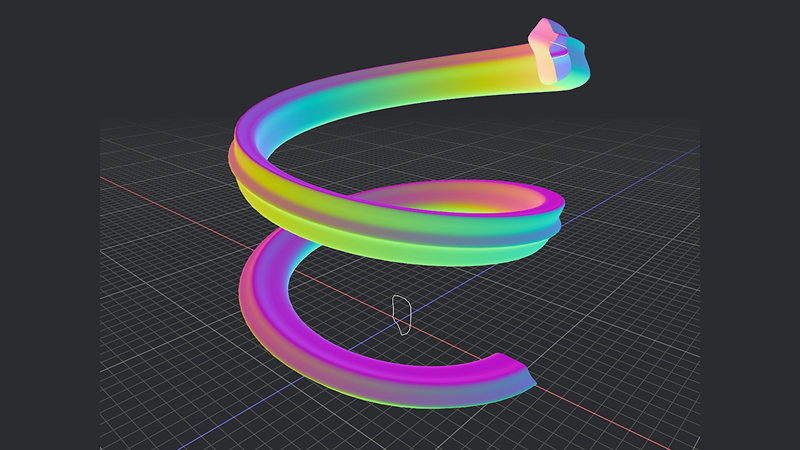

Surface Modeling
B-Rep Modeling
Mesh Modeling
Implicit Modeling
Nodi develops its own CAD kernel (3D geometry computation engine) in-house, enabling flexible addition of modeling features specialized for specific purposes and trade-off design.
Talk to Team
Examples of Available Solutions
-
Cross-Modeling Capabilities for NURBS, Mesh, and Implicit
Shape optimization for component lightweighting, structural optimization, and manufacturing method adaptation
-
Manufacturing Feasibility Assessment
Analyze overhang angles, wall thickness, and tool access within the kernel
-
Large-Scale Point Cloud Data Processing & Editing
Import and Edit 3D Models of any format
Supports various 3D data formats used in manufacturing and architecture.

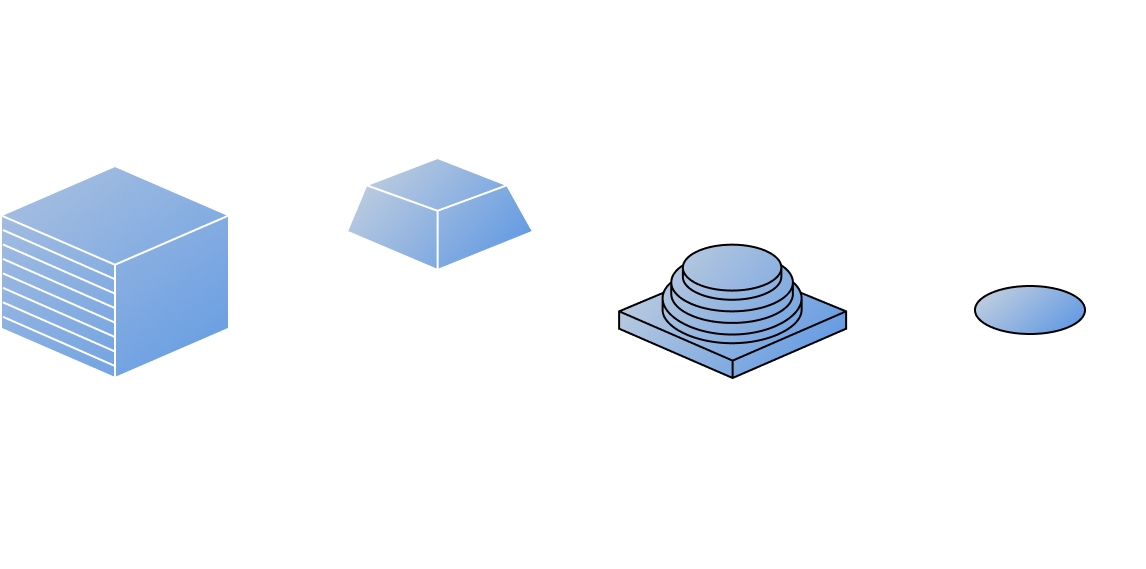

Export manufacturing ready data
Output optimal data shapes by reverse-engineering from manufacturing and construction methods.
- .stl
- .dxf
- .gcode

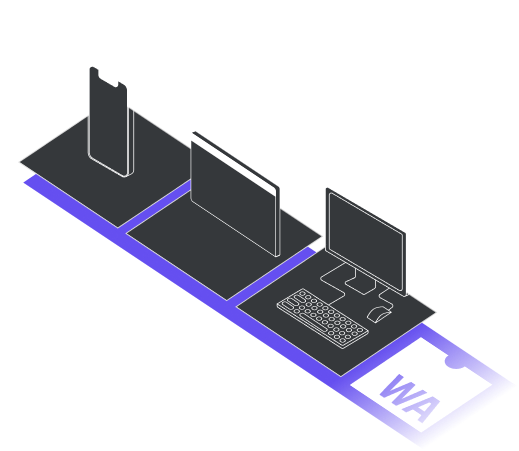

WebAssembly-powered for cross-platform integration
Nodi's core 3D geometry computation capabilities are provided as WebAssembly modules, running natively across all environments from desktop to mobile to web.
Case Study

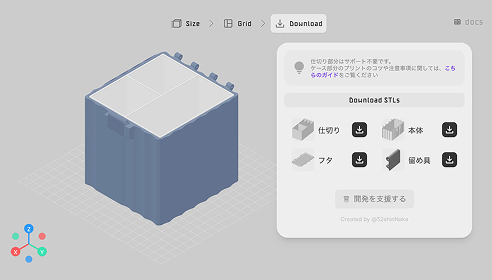

Bento3D
Bento3D is a web tool where you can generate 3d printable box in seconds
Taqaddom Scales Co. Lts
For Taqaddom Scales, an enterprise-grade shelving systems, we developed a tool that allows users to instantly generate shelving quotes by inputting floor plans directly in-store. The modeling component is powered by Nodi.
Showcase
